Prim算法如何用C语言实现最小生成树？

Prim算法实现最小生成树（C语言）

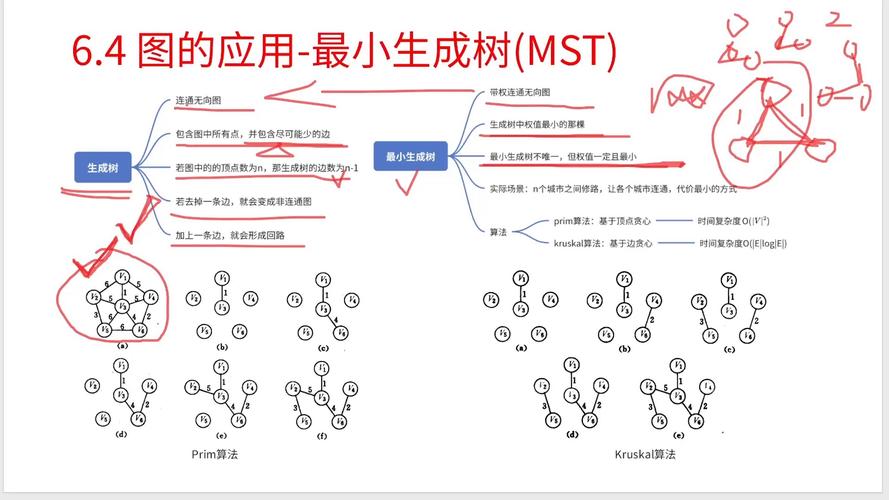

Prim算法是一种用于寻找无向图最小生成树的贪心算法,下面我将提供一个完整的C语言实现。

算法思路

1. 从任意一个顶点开始，将其加入生成树集合
2. 重复以下步骤直到所有顶点都加入生成树：
   • 在生成树集合外的顶点中，找到与生成树集合连接的最小权边
   • 将该边及其顶点加入生成树集合
   • 更新其他顶点到生成树的最小距离

C语言实现

#include <stdio.h>
#include <limits.h>
#include <stdbool.h>
#define V 5 // 顶点数量
// 找到未包含在MST中的顶点中key值最小的顶点
int minKey(int key[], bool mstSet[]) {
    int min = INT_MAX, min_index;
    for (int v = 0; v < V; v++) {
        if (mstSet[v] == false && key[v] < min) {
            min = key[v];
            min_index = v;
        }
    }
    return min_index;
}
// 打印构建的MST
void printMST(int parent[], int graph[V][V]) {
    printf("Edge \tWeight\n");
    for (int i = 1; i < V; i++) {
        printf("%d - %d \t%d \n", parent[i], i, graph[i][parent[i]]);
    }
}
// 使用Prim算法构建MST
void primMST(int graph[V][V]) {
    int parent[V];     // 存储构建的MST
    int key[V];        // 存储到MST的最小权重
    bool mstSet[V];    // 顶点是否包含在MST中
    // 初始化所有key值为无穷大，mstSet[]为false
    for (int i = 0; i < V; i++) {
        key[i] = INT_MAX;
        mstSet[i] = false;
    }
    // 第一个顶点总是MST的根
    key[0] = 0;
    parent[0] = -1; // 第一个节点没有父节点
    // 构建MST，V-1条边
    for (int count = 0; count < V - 1; count++) {
        // 找到未包含在MST中的顶点中key值最小的顶点
        int u = minKey(key, mstSet);
        // 将选定的顶点加入MST集合
        mstSet[u] = true;
        // 更新与u相邻的顶点的key值和parent值
        for (int v = 0; v < V; v++) {
            // graph[u][v]非零，v不在MST中，且graph[u][v]小于key[v]
            if (graph[u][v] && mstSet[v] == false && graph[u][v] < key[v]) {
                parent[v] = u;
                key[v] = graph[u][v];
            }
        }
    }
    // 打印构建的MST
    printMST(parent, graph);
}
int main() {
    /* 示例图 */
    int graph[V][V] = {
        {0, 2, 0, 6, 0},
        {2, 0, 3, 8, 5},
        {0, 3, 0, 0, 7},
        {6, 8, 0, 0, 9},
        {0, 5, 7, 9, 0}
    };
    primMST(graph);
    return 0;
}

代码说明

1. 数据结构:

   • graph[V][V]: 邻接矩阵表示的图
   • key[]: 存储每个顶点到MST的最小权重
   • mstSet[]: 标记顶点是否已包含在MST中
   • parent[]: 存储MST的结构

2. 主要函数:

   • minKey(): 找到未包含在MST中的顶点中key值最小的顶点
   • primMST(): Prim算法主函数
   • printMST(): 打印生成的MST

3. 时间复杂度:

   • 使用邻接矩阵: O(V²)
   • 使用邻接表和优先队列: O(E + V log V)

示例输出

对于给定的示例图,程序输出将是：

Edge    Weight
1 - 0    2
2 - 1    3
3 - 0    6
4 - 1    5

这表示最小生成树由以下边组成：

• 顶点1-顶点0，权重2
• 顶点2-顶点1，权重3
• 顶点3-顶点0，权重6
• 顶点4-顶点1，权重5

优化版本（使用优先队列）

对于稀疏图,可以使用优先队列来优化时间复杂度：

#include <stdio.h>
#include <stdlib.h>
#include <limits.h>
#define V 5
typedef struct MinHeapNode {
    int v;
    int key;
} MinHeapNode;
typedef struct MinHeap {
    int size;
    int capacity;
    int *pos;
    MinHeapNode **array;
} MinHeap;
MinHeapNode* newMinHeapNode(int v, int key) {
    MinHeapNode* node = (MinHeapNode*)malloc(sizeof(MinHeapNode));
    node->v = v;
    node->key = key;
    return node;
}
MinHeap* createMinHeap(int capacity) {
    MinHeap* heap = (MinHeap*)malloc(sizeof(MinHeap));
    heap->pos = (int*)malloc(capacity * sizeof(int));
    heap->size = 0;
    heap->capacity = capacity;
    heap->array = (MinHeapNode**)malloc(capacity * sizeof(MinHeapNode*));
    return heap;
}
void swapMinHeapNode(MinHeapNode** a, MinHeapNode** b) {
    MinHeapNode* t = *a;
    *a = *b;
    *b = t;
}
void minHeapify(MinHeap* heap, int idx) {
    int smallest, left, right;
    smallest = idx;
    left = 2 * idx + 1;
    right = 2 * idx + 2;
    if (left < heap->size && heap->array[left]->key < heap->array[smallest]->key)
        smallest = left;
    if (right < heap->size && heap->array[right]->key < heap->array[smallest]->key)
        smallest = right;
    if (smallest != idx) {
        MinHeapNode *smallestNode = heap->array[smallest];
        MinHeapNode *idxNode = heap->array[idx];
        heap->pos[smallestNode->v] = idx;
        heap->pos[idxNode->v] = smallest;
        swapMinHeapNode(&heap->array[smallest], &heap->array[idx]);
        minHeapify(heap, smallest);
    }
}
int isEmpty(MinHeap* heap) {
    return heap->size == 0;
}
MinHeapNode* extractMin(MinHeap* heap) {
    if (isEmpty(heap))
        return NULL;
    MinHeapNode* root = heap->array[0];
    MinHeapNode* lastNode = heap->array[heap->size - 1];
    heap->array[0] = lastNode;
    heap->pos[root->v] = heap->size - 1;
    heap->pos[lastNode->v] = 0;
    --heap->size;
    minHeapify(heap, 0);
    return root;
}
void decreaseKey(MinHeap* heap, int v, int key) {
    int i = heap->pos[v];
    heap->array[i]->key = key;
    while (i && heap->array[i]->key < heap->array[(i - 1) / 2]->key) {
        heap->pos[heap->array[i]->v] = (i - 1) / 2;
        heap->pos[heap->array[(i - 1) / 2]->v] = i;
        swapMinHeapNode(&heap->array[i], &heap->array[(i - 1) / 2]);
        i = (i - 1) / 2;
    }
}
bool isInMinHeap(MinHeap *heap, int v) {
    if (heap->pos[v] < heap->size)
        return true;
    return false;
}
void printMST(int parent[], int graph[V][V]) {
    printf("Edge \tWeight\n");
    for (int i = 1; i < V; i++)
        printf("%d - %d \t%d \n", parent[i], i, graph[i][parent[i]]);
}
void primMST(int graph[V][V]) {
    int parent[V];
    int key[V];
    MinHeap* heap = createMinHeap(V);
    for (int v = 1; v < V; v++) {
        parent[v] = -1;
        key[v] = INT_MAX;
        heap->array[v] = newMinHeapNode(v, key[v]);
        heap->pos[v] = v;
    }
    heap->array[0] = newMinHeapNode(0, key[0]);
    heap->pos[0] = 0;
    key[0] = 0;
    heap->size = V;
    while (!isEmpty(heap)) {
        MinHeapNode* minHeapNode = extractMin(heap);
        int u = minHeapNode->v;
        for (int v = 0; v < V; v++) {
            if (graph[u][v] && isInMinHeap(heap, v) && graph[u][v] < key[v]) {
                key[v] = graph[u][v];
                parent[v] = u;
                decreaseKey(heap, v, key[v]);
            }
        }
    }
    printMST(parent, graph);
}
int main() {
    int graph[V][V] = {
        {0, 2, 0, 6, 0},
        {2, 0, 3, 8, 5},
        {0, 3, 0, 0, 7},
        {6, 8, 0, 0, 9},
        {0, 5, 7, 9, 0}
    };
    primMST(graph);
    return 0;
}

这个优化版本使用最小堆来提高效率,特别适合处理稀疏图。
